Exora

Exora

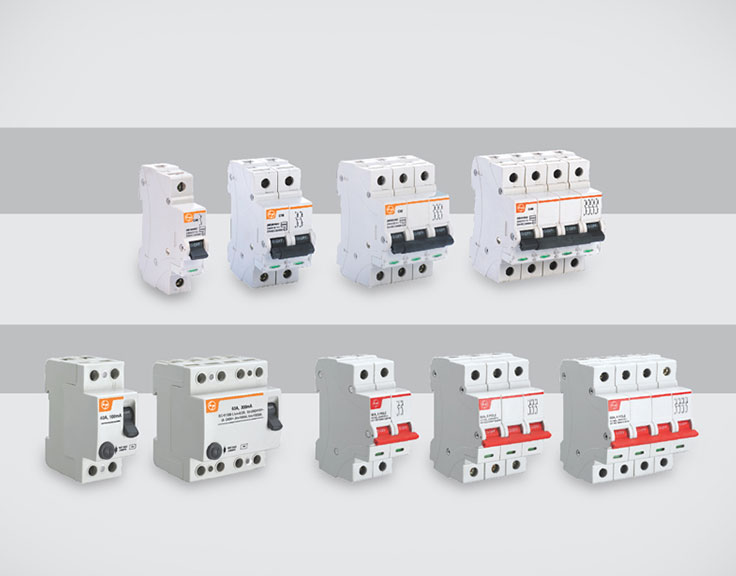

The Exora range is designed to meet the needs of safety at the final distribution of electrical power. The range offers modular devices that makes your home and workplace safe to operate and live.

The EXORA range offers various Protection and Control devices such as Miniature Circuit Breakers (MCB) – for AC & DC systems,   Residual Current Circuit Breakers (RCCBs) & Isolators for the final distribution of electrical power. With a robust design and user-friendly features, the Exora range products are reliable and easy to use.

Categories: , , ,

Description

MCBs:

0.5A – 63A | B, C, D Curves | SP, DP, TP, FP

Available in AC & DC versions

The KEMA certified, AC MCBs (Miniature Circuit Breakers)  conforms to IS/IEC 60898-1 & IEC 60947-2, hence offers protection for both residential and industrial applications. Also, a Variety of DC MCB offers protection for various DC applications

Short circuit breaking capacity      : 10kA as per IS/IEC 60898-1

: 15kA(up to 40A)

10kA(50A & 63A)

DC MCBs conforms to IEC 60947-2

Rated voltage  : 130V(SP)/250V(DP) with rated short-circuit         breaking capacity of 6kA

Rated voltage  : 250V(SP)/500V(DP) with rated short-circuit         breaking capacity of 10kA

Salient features:

  • True Contact Indication in MCBs enhancing safety by reflecting actual contact status
  • Integrated Label holder for easy circuit identification
  • IP-20 Finger-proof terminals enhances safety and eliminates the chances of accidental contact

RCCBs:

25A – 100A | 10mA – 300mA | DP & FP

ISI approved EXORA RCCBs provide protection against earth leakage fault and protect against electric shock for all AC type applications with conditional short circuit capacity of 10kA.

A modular RCCB (Residual Current Circuit Breakers) has a Test button that facilitates checking the healthiness of the device by creating an artificial electrical fault. Its Neutral advance mechanism ensures complete protection.

Isolators

40A- 100A | DP,TP & FP

Isolators are typically used for a switching function and to provide isolation in electrical circuits. The EXORA isolators ensures that the circuit remains completely isolated/ no current at the load side even if the impulse voltage when the isolator is OFF . It’s true contact indication reflects actual contact status for user’s safety.

  • Range of Controlling and monitoring devices
    • MCB accessories:  Auxiliary Contact, Trip Alarm Contact, Shunt Release

Credit – https://www.lntebg.in/products-services/products/low-voltage-products/final-distribution-products-mcb-rccb-rcbo-dbs/exora/

Credits

https://www.lntebg.in/products-services/products/low-voltage-products/final-distribution-products-mcb-rccb-rcbo-dbs/exora/
